Reporter

The Reporter feature allows you to create reports from any data collected by STOR2RRD. Creating reports can be automated.
Reports can be regularly send to email recepients, generated manually or picked up from the server where they are saved.

Reporting options

Reported devices
It allows reporting through all collected metrics by devices.
  • Storage systems
  • SAN switch devices
  • Custom Groups
Output format
  • CSV
  • PDF
  • graphs in png format
  • graphs in png zipped in one file
Time scheduling
  • Daily
  • Weekly
  • Monthly
  • Selected day in a year or a month
Target receiver
  • email address
  • group of email addresses
  • leave it on the filesystem (/home/stor2rrd/stor2rrd/reports/<user>/) for 60 days

Free edition restrictions

This feature has 2 restrictions for users using free edition:
  1. You can configure only 1 report at a time (no restriction on the number of items in the report)
  2. It can be initiated only from the front-end (GUI), it does not allow to be scheduled to run automatically.
Users authorization follows their ACL restrictions. Each user has its own private reporter configuration.
You can see it on our free demo site.
This feature is available since STOR2RRD version 2.30.

Reporter examples

Custom group
Storages POOL
SAN switches totals
Capacity storage PDF
All storages capacity CSV
EMC storages POOL IOPS png
EMC storages HOST CSV

Configuration

Create new report

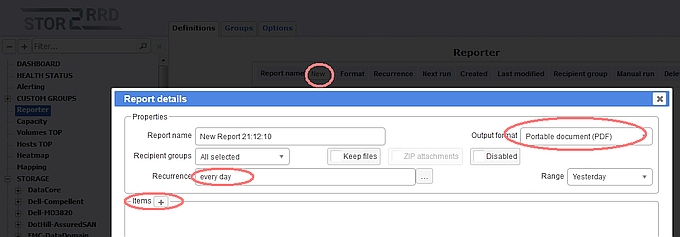

Reporter configuration 1


Create report item

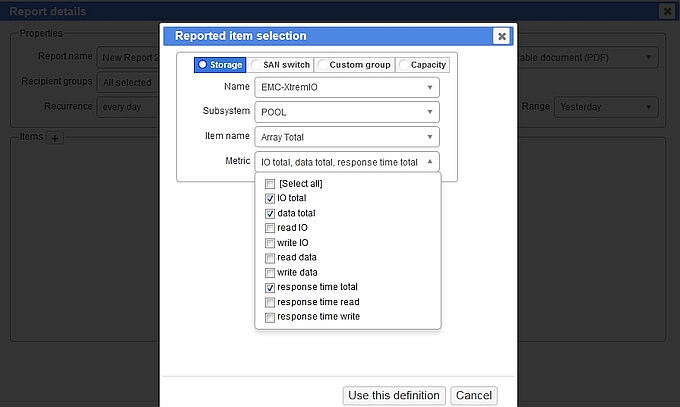

Reporter configuration 2


Save and Run

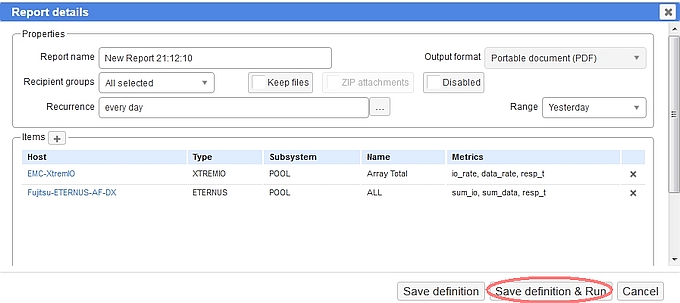

Reporter configuration 3


Manual run

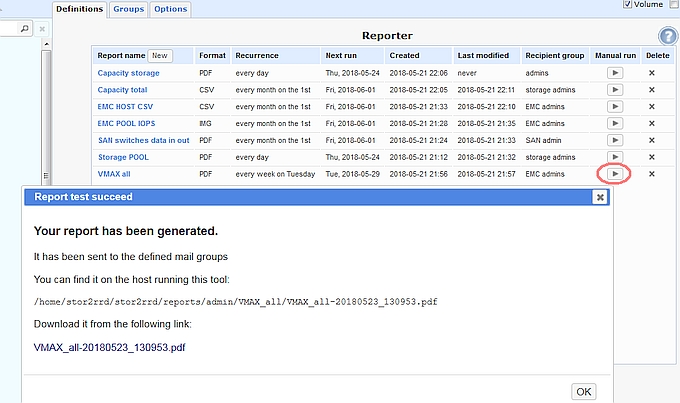

Reporter configuration 4
