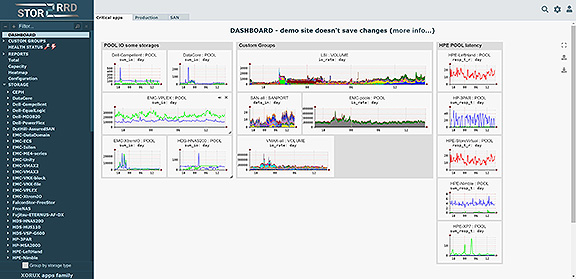

Free Storage, SAN and LAN Performance and Capacity Monitoring

  • Analyze key infrastructure performance metrics of your Storage, SAN and LAN devices.
  • Prognosis for all your Infrastructure.
  • Monitor and troubleshoot pro-actively.
  • Optimize your mission-critical IT infrastructure.

Click & try free demo

Without registration
Try it free for all time
No credit card required
Performance monitoring of: Storage SAN LAN

This program is free software. You can redistribute it and/or modify it under the terms of the GNU General Public License.
Get even more functionality with the Enterprise edition.

Xorux apps family

by Xorux lpar2rrd

Take control and see all your physical and virtual servers from one point of view with LPAR2RRD.

  • 1st of all due to its unique web-based UI for graphical interpretation of performance utilization in virtualized environment
  • It is free to use. You do not need to invest in expensive commercial solutions
  • You can optionally buy support
  • Simple administration
  • Enterprise edition
More information
by Xorux stor2rrd

Analyze key infrastructure performance metrics of your Storage, SAN and LAN devices with STOR2RRD.

  • You can find utilization of any attached storage in a simple graphical form comprehensible to anyone from technician to management level
  • It is free to use. You do not need to invest in expensive commercial solutions
  • Simple administration
  • Enterprise edition
by Xorux Xormon

XorMon is a merge of LPAR2RRD and STOR2RRD tools into one tool.

It is able to provide you complete performance and mapping overview from OS level through OS virtualization layers, SAN and Storage.

Expected release is Oct 2020.

More information

Supported devices

Is support for your storage missing?
Vote for it to give us visibility of that. More votes, bigger chance we go for it.
Product roadmap.

Storage monitoring - schema
NetApp®
  • NetApp AFF A-series
  • NetApp E/EF-series
  • NetApp FAS (Clustered Data OnTAP (CDOT))
  • NetApp FAS (OnTAP 7-mode)
  • NetApp SolidFire
IBM®
  • IBM System Storage DS8000, DS6800
  • IBM FlashSystem 9100, V9000, V840, 900, 840
  • IBM FlashSystem 9200, 7200, 5100, 5000
  • IBM FlashSystem A9000
  • IBM Storwize family (V7000, V7000-Unified, V5000, V3700)
  • IBM Spectrum Virtualize (SVC)
  • IBM Spectrum Accelerate (XIV)
  • IBM DS3xxx, 4xxx, 5xxx
  • IBM DCS3700
  • IBM System Storage N series
Lenovo®
  • Lenovo Storage S Series (S2200/S3200)
  • Lenovo Storage V Series (V5030/V3700)
  • Lenovo ThinkSystem DS Series (DS2200/4200/6200)
  • Lenovo ThinkSystem DE Series (DE2000/4000/6000)
  • Lenovo ThinkSystem DM Series (DM3000/5000/7000)
Dell® EMC²®
  • EMC² PowerMax
  • EMC² VMAX
  • EMC² XtremIO
  • EMC² VPLEX
  • EMC² ECS
  • EMC² Unity
  • EMC² VNX
  • EMC² VNX file
  • EMC² DataDomain
  • EMC² Isilon
  • EMC² Celerra
  • EMC² CLARiiON CX4
  • EMC² PowerVault® ME4 Series
  • EMC² VNXe
  • Dell SC Series (Compellent)
  • Dell PowerVault MD3000
Hitachi®
  • Hitachi Data Systems VSP G
  • Hitachi Data Systems VSP F
  • Hitachi Data Systems VSP 5000
  • Hitachi Data Systems HUS-VM
  • Hitachi Data Systems VSP
  • Hitachi Data Systems HUS
  • Hitachi Data Systems AMS
  • Hitachi Data Systems HNAS
  • Hitachi Data Systems HCP
HPE®
  • HPE Nimble
  • HPE Primera
  • HPE StorageWorks XP7
  • HPE StoreServ® 3PAR
  • HPE MSA 2000/1000
  • HPE StoreOnce
  • HPE StoreVirtual
  • HPE LeftHand
Other Vendors
  • Ceph
  • DataCore® SANsymphony
  • Dot Hill/Seagate AssuredSAN®
  • FalconStor FreeStor
  • Fujitsu® ETERNUS DX/AF series
  • Huawei® OceanStor
  • Huawei Dorado
  • INFINIDAT InfiniBox®
  • Inspur AS 5500/5300/2600/2200
  • iXsystems FreeNAS, TrueNAS
  • Oracle® ZFS
  • Pure Storage® FlashArray
  • Pure Storage FlashBlade
  • QNAP NAS
  • Quantum® StorNext Q-Series
  • Qumulo
  • RAIDIX
  • Synology
  • Cisco MDS
  • Cisco Nexus
  • Brocade and all their re-brands
  • Brocade Network Advisor
  • QLogic
  • Cisco
  • Huawei
  • Any network device with Cisco-compatible SNMP MIBs
  • Veritas NetBackup Appliance
  • HPE StoreOnce 4.x support

Announcements in brief

7.00: support of Ceph, Synology, Qumulo, RAIDIX
2.80: support of NetApp SolidFire, FalconStor FreeStor, Hitachi Content Platform, NAP
2.70: support of Dell EMC² ECS, iXsystems FreeNAS and TrueNAS, HPE Primera and Hitachi VSP 5000
2.60: support of Hitachi HNAS, Oracle ZFS, Lenovo ThinkSystem DE Series
2.50: support of IBM FlashSystem 9100, Dell EMC² PowerMAX, Dell EMC² PowerVault ME4-Series
2.40: support of LAN monitoring, support of HPE StoreVirtual, IBM FlashSystem, PureStorage FlashBlade
2.30: support of Dell EMC² XtremIO, DataCore SANsymphony, HPE StoreOnce, Lenovo ThinkSystem DS Series
2.20: support of Dell EMC² Isilon and DataDomain, INFINIDAT Infinibox, HPE Nimble and Fujitsu ETERNUS
2.10: support of Dell EMC² VPLEX, Dell Compellent, Huawei OceanStor, PureStorage, Brocade Network Advisor
2.00: support of Dell EMC² VMAX, Dot Hill, Lenovo S2200/S3200, HPE MSA 2000/1000, HPE 3PAR re-implementation

Access summary

Vendor Storage type User role Interface Used ports 3rd party SW
Dell EMC² PowerMax performance monitor REST API 8443
VMAX performance monitor REST API 8443
VPLEX vplexuser CLI
REST API
22, 443
Unity operator UEM CLI 443 Unisphere UEM CLI
VNX block operator Navisphere CLI 443, 6389 Navisphere CLI
VNX file operator CLI 22
Celerra nasadmin CLI 22
CLARiiON CX4 operator Navisphere CLI 443, 6389 Navisphere CLI
VNXe operator REST API 443 VNXe UEM CLI
Data Domain user CLI 22
Isilon read only REST API 8080
XtremIO read only REST API 443
PowerVault ME4 monitor REST API
SMI-S
80, 5988
(443, 5989)
Vendor Storage type User role Interface Used ports 3rd party SW
IBM DS8000 monitor DScli 1750, 1751 IBM DScli
SVC,Storwize RestrictedAdmin SVC CLI 22
FlashSystem V9000,9100,V840 RestrictedAdmin SVC CLI 22
FlashSystem 900,840 RestrictedAdmin SVC CLI 22
XIV,A9000 readonly SMI-S 5989
DS3000,4000,5000 monitor SMcli 2463 IBM SMcli
Vendor Storage type User role Interface Used ports 3rd party SW
NetApp C-mode monitor NetApp CLI
NetApp API
22, 80, 443
7-mode monitor NetApp CLI
NetApp API
22, 80, 443
E/EF-series monitor REST API 8443
E/EF-series monitor SMcli 2463 SANtricity SM
SolidFire Reporting REST API 443
Vendor Storage type User role Interface Used ports 3rd party SW
Hitachi VSP-G
VSP-F
VSP
HUS-VM
read only CCI
Export Tool

SNMP
TCP: 1099,
51099 - 51101
UDP: 31001
UDP: 161
CCI
Export Tool
HUS, AMS read HSNM2 CLI 2000, 28355 HSNM2 CLI
HNAS read SNMP
v2c, v3
UDP:161
HCP Monitor REST API, SNMP TCP:443, UDP:161
Vendor Storage type User role Interface Used ports 3rd party SW
HPE Primera browse 3PAR CLI
via ssh
22
Primera browse 3PAR CLI 22, 5783, 5782 3PAR CLI
3PAR browse 3PAR CLI
via ssh
22
3PAR browse 3PAR CLI 22, 5783, 5782 3PAR CLI
XP7 read only CCI,
Export Tool

SNMP
TCP: 1099,
51099 - 51101
UDP: 31001
UDP: 161
CCI
Export Tool
MSA P2000 monitor REST API
SMI-S
80, 5988
(443, 5989)
Nimble guest CLI 22
StoreOnce user REST API 443
StoreVirtual view_only CLI 16022
Vendor Storage type User role Interface Used ports 3rd party SW
Lenovo Storage V Series
(V5030/V3700)
RestrictedAdmin CLI 22
Storage S Series
(S2200/S3200)
monitor REST API
SMI-S
80, 5988
(443, 5989)
ThinkSystem DS Series
(DS2200/4200/6200)
monitor REST API
SMI-S
80, 5988
(443, 5989)
ThinkSystem DE Series
(DE2000/4000/6000)
monitor REST API 8443
ThinkSystem DE Series
(DE2000/4000/6000)
monitor SMcli 2463 Lenovo SMcli
ThinkSystem DM Series
(DE3000/5000/7000)
monitor Lenovo CLI
Lenovo API
22, 80, 443
Vendor Storage type User role Interface Used ports 3rd party SW
Dell MD3000 monitor SMcli 2463 Dell SMcli
SC series
(Compellent)
Reporter REST API 3033 Enterprise Manager or
DSM Data Collector
Vendor Storage type User role Interface Used ports 3rd party SW
Dot Hill AssuredSAN monitor REST API
SMI-S
80, 5988
(443, 5989)
Quantum StorNext monitor REST API
SMI-S
80, 5988
(443, 5989)
Huawei OceanStor read-only REST API 8088
Dorado read-only REST API 8088
Pure Storage FlashArray read-only REST API 443
FlashBlade read-only REST API 443
INFINIDAT Infinibox read_only REST API 443
Fujitsu ETERNUS monitor CLI 22
DataCore SANsymphony View REST API 80 (443) DataCore REST API package
Oracle Oracle ZFS read, create REST API 215
iXsystems FreeNAS root REST API 443
TrueNAS root REST API 443
Qumulo Qumulo Users REST API 8000
FalconStor FreeStor viewer REST API 443
QNAP QNAP regular OS user SSH 22
RAIDIX RAIDIX 5.x regular OS user SSH 22
Synology Synology read SNMP
v2c, v3
UDP:161
Inspur Inspur RestrictedAdmin SVC CLI 22
Ceph Ceph Prometheus API 9283
Brocade SAN switch read-only SNMP v1,2,3 161 UDP
QLogic SAN switch read-only SNMP v1,2,3 161 UDP
Cisco MDS and Nexus read-only SNMP v1,2,3 161 UDP
Brocade Network Advisor operator
read only
REST API 443
LAN LAN switch read-only SNMP v1,2,3 161 UDP
Xorux

Our mission

  • Bring an easy solution to the market for performance monitoring and capacity planning of your highly virtualized environment with a simple and easily comprehensible UI.
  • It is intended as the operation front-end tool which can simply and quickly identify load abnormality and locate problems at the infrastructure level.
